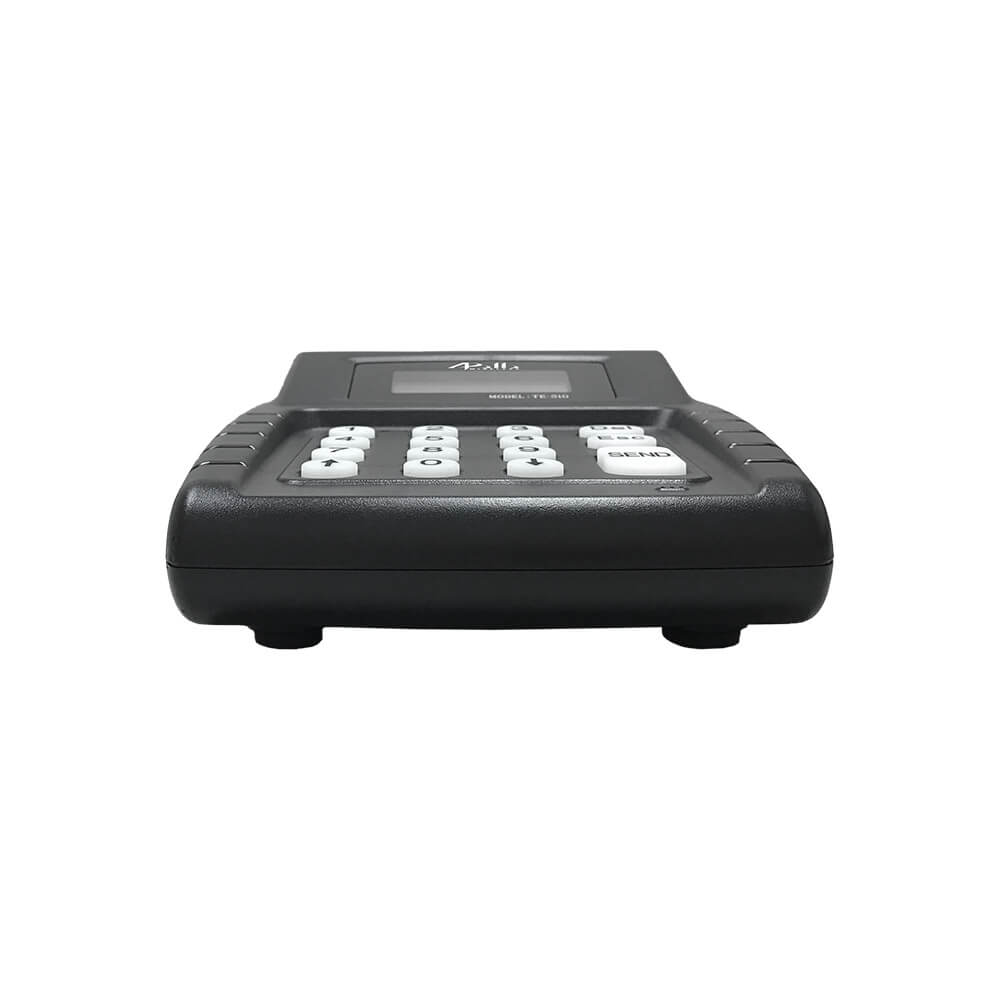

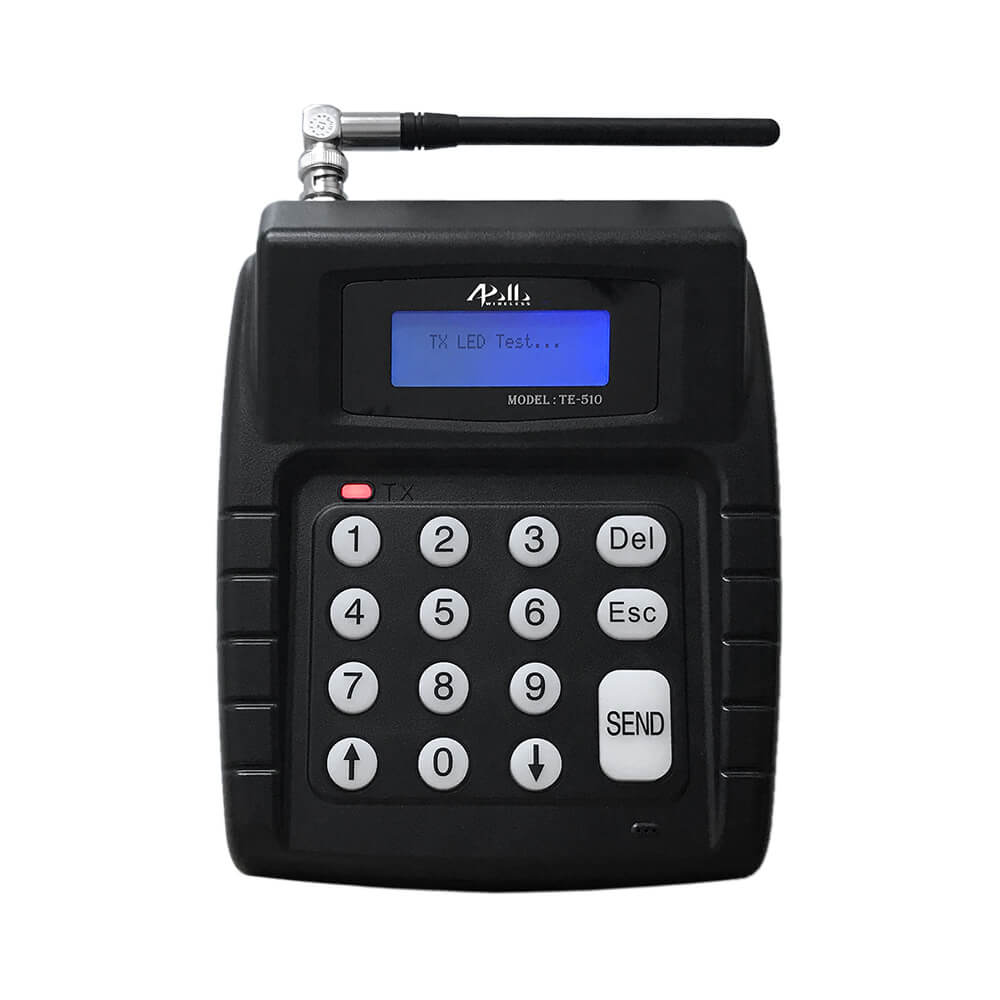

PABX Transmitter Series (TE-510)
SKU:TE-510- POCSAG desktop transmitter with 1W power
- Wide coverage: 800m ~ 1Km
- Compatible with VHF and UHF
- Support 899 capcodes and 99 canned messages

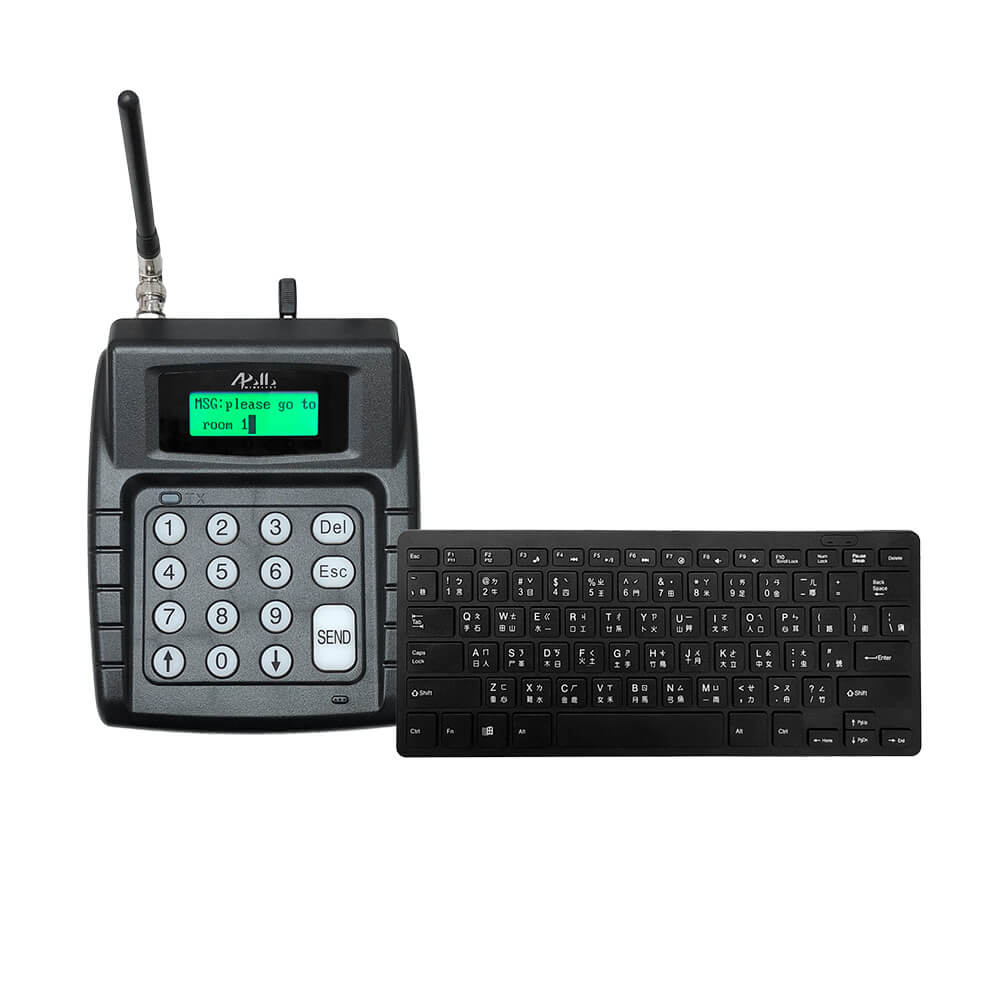

- Compatible with external USB keyboard
Description
PABX Transmitter Series (TE-510), a Private Automatic Branch eXchange, is a compact desktop transmitter designed for in-house alphanumeric and voice paging. Setting up the phone-in system is as easy as plugging it into a phone or fax machine. The phone-in text or voice paging system operates seamlessly anywhere and anytime. Initiating a page is simple — just enter a pager number, a voice or text message, and press “send.”
Feel free to contact us, and we will provide you with the most suitable solution for your business needs. Explore more wireless equipment application videos.
PABX Transmitter Series (TE-510) – Product Description
- POCSAG desktop transmitter with 1W power
- Wide coverage: 800m ~ 1Km
- Compatible with VHF and UHF
- Manual programming available
- Support 899 capcodes and 99 canned messages (alpha, numeric and tone)
- 7 dry contacts (alarm input)
- Compatible with external USB keyboard
- Support PABX (private automatic branch exchange)
- Voice recording for voice pager
- LED backlit screen
- Support protocols: COMP1, COMP2, GACOMP2 and TAP
Item Description
| Model | TE-510A | TE-510AD | TE-510ADV |
| Line Impedance (Off-hook) | – | 600 ohms | 600 ohms |
| Ring Detect Sensitivity | – | 28~150 Vrms | 28~150 Vrms |
| Loop Current | – | 10~100 mA | 10~100 mA |
| DC On-Hook Impedance | – | 10M ohms (MIN) | 10M ohms (MIN) |
| DTMF Input Signal Level | – | -36dBm (MIN) | -36dBm (MIN) |
| Two Tone Freq. Accuracy | – | ±0.15% | ±0.15% |
| USB Keyboard | ♦ | ♦ | ♦ |
| PABX + Alpha message | – | ♦ | ♦ |
| PABX + Voice message | – | – | ♦ |
Additional information
| Frequency | VHF 135~174 MHz, UHF 430~470 MHz |
|---|---|
| Channel Spacing | 12.5KHz, 25KHz |
| Output Power | 1W |
| Harmonic Radiation | 60 dBc or less -36dBm |
| Frequency Stability | ±2.5 ppm at -10°C~+60°C |

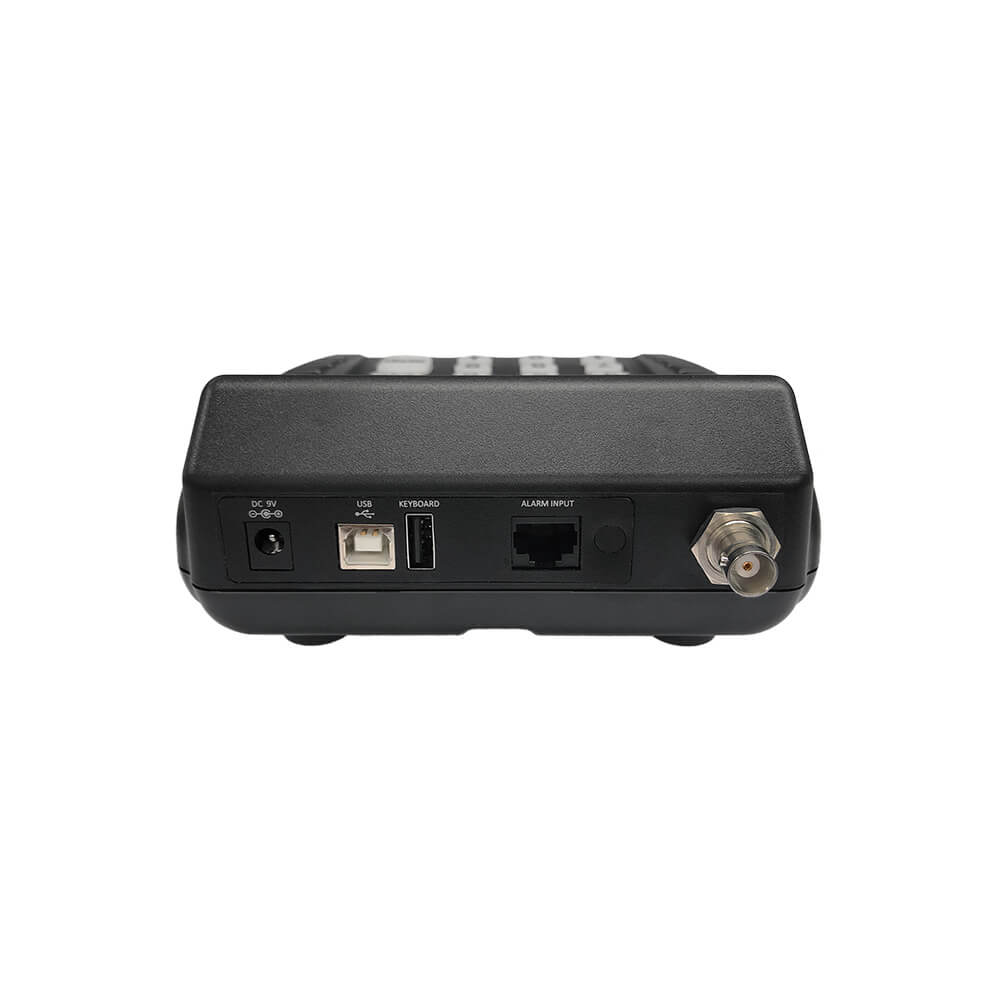

| Output Connect | BNC (F) |
| Current Consumption | Standyby: 120mA; Transmit: 420mA |
| Dimension | 154 (L) x 190 (W) x 64 (H) mm (Without Antenna and Keyboard) |
| Weight | 390 g |
